Large-Screen 3D Holographic Projection for Business Presentations Realistic Holographic Visuals
A Vision Beyond Limits: 75-inch Ultra-HD 3D Holographic Projection System Creates a Stunning Visual Space
In large commercial spaces, brand showrooms, and high-end events, creating a visually impactful yet adaptable 3D display system has become a new challenge for brand display and space design. The 75-inch ultra-HD 3D Holographic Projection system offers a systematic solution for large-scale, high-requirement visual presentations through flexible multi-screen combinations and customized installation options.
Ultra-HD Video Wall: Large-Format 3D Visual Effects
The system uses 75-inch ultra-HD fan units as splicing modules, with each fan displaying an image size of 75×176 cm. Multiple fans, when spliced together, form a continuous, complete, giant suspended image, suitable for medium to long-distance viewing. It maintains a clear, 3D visual effect even in open spaces, creating an immersive visual experience.
Flexible Installation: Adaptable to Diverse Scenarios
The system supports multiple installation methods, allowing for flexible layout based on spatial structure and display needs:

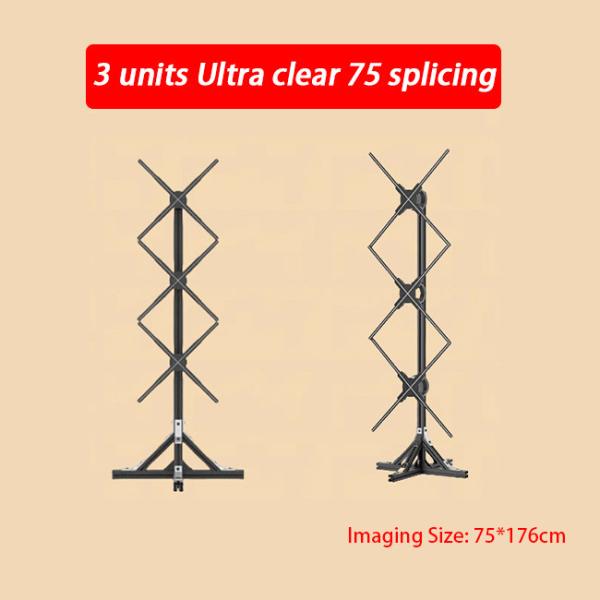

Three-Vertical Side-by-Side Installation:Suitable for vertical spaces, such as shopping mall atriums and exhibition hall entrances.
Three-Vertical Cabinet Installation:Embedded or freestanding cabinet design, offering a clean appearance and easy maintenance.
Horizontal Splicing:Suitable for wide-screen banner content displays, such as stage backdrops and brand walls.
Multi-Screen Free Combination:Supports multi-row, multi-column matrix splicing to construct curved, circular, or irregularly shaped holographic walls.
Wide Range of Applications
Brand Flagship Stores and Commercial Centers:Large-scale 3D product displays, dynamic brand story interpretation.
Exhibitions and Launch Events:Main visual presentation, product interactive experience areas, stage special effects backgrounds.
Museums and Science Museums:Artifact restoration, scientific principle visualization, immersive guided tours.
High-End Conferences and Events:Themed image walls, data visualization presentation, guest interaction backgrounds.
System Integration and Content Support
The system supports unified content management and split-screen control. Screen segmentation, synchronized playback, and dynamic scheduling can be achieved through professional software. Customized content design can be integrated to achieve multi-dimensional fusion of image and space, sound and interaction, creating an "editable spatial visual system."
| Product Model | ZXTLCD--M6 |
| Device System | Android Smart System |
| Main Control (Main Frequency) | AllwinnerA40I(Quad-core 1.2GHz) |
| Display Size | 64.5*64.5CM |
| Device Thickness | 8.5CM |
| Resolution | 2800*896 |
| Number of LED Chips | 896 |
| Viewing Angle | 176° |
| Rated Power | 175W/24V |
| Input Voltage | 100-240VAC,50/60HZ |
| Storage Space | 8GB |
| Video/Image Format | MP4/JPG, |
| Bluetooth audio output | Support |
| Remote control | Support |
| Refresh rate | 3840MHz (2037 units of 1920MHz) |
| Video processing method | FPGA hardware processing |
| Splicing method | Supports local area network splicing / remote cloud splicing |
| Decoding method | Hardware decoding |
| Driver IC | Jichuang 2153 |
| Splicing center point spacing | 460mm |
| Content replacement method | Mobile APP, WEB end, PC |
| Software support system | Windows,IOS,Android |
| Color | Black |
| Weight | 0.78KG |
| Transmittance | 92% |
| Noise | 50 decibels |
| Brightness | 3000cd/m2 |
| Frame Rate | 24 frames per second |
| Revolutions | 720/min |
| Functional Features | Supports point-to-point control, network remote control, clustering, text ball, image cube |
| Provides upload software | Free |
| Product Material | ABS+PC/AL |
| Theoretical Machine Lifespan | 30,000 hours |
| Warranty Period | 12 months |
| Packaging Size/Weight | Disassembled lamp board packaging size: Inner box (Size: 428*255*125mm, Weight: including device 2.10KG) Outer box one (1 unit packed, Size: 438*135*270mm, Weight: including device 2.45kg) Outer box two (6 units packed, Size: 438*390*535mm, Weight: including device 13.7KG) |
| Unpacked lamp board dimensions: Inner box (Size: 558*555*128mm, Weight: including device 2.50KG) Outer box one (1 unit packed, Size: 590*568*160mm, Weight: including device 3.1kg) Outer box two (4 units packed, Size: 570*570*530mm, Weight: including device 11.2KG) |
| Common application locations | Retail chain stores, shopping centers, restaurants, clubs/bars, 4S stores, gas stations, subway/train stations, airports, customs, elevator advertising, exhibitions, press conferences, ceremonial events, education, etc. |
| Pricing terms＊ | Excluding tax, not including shipping |
| Battery capacity calculation | Estimated working time = battery capacity / (power / voltage * 1000)
For example: Estimated working time = battery capacity 1000mAh / (power 20W / voltage 24V * 1000)
= 1000mAh / (20W / 24V * 1000)
= 10000mAh / 830mA
= 12 hours |
The 75-inch ultra-high-definition 3D Holographic Projection system is not just a display device, but also a scalable and customizable visual architecture. It breaks the limitations of traditional screens in terms of size and form, providing a holistic solution from visual to experiential perspectives for large spaces through modular splicing and flexible installation, allowing holographic technology to truly serve spatial narrative and brand expression.
If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
